Terminal Blocks

Terminal Blocks

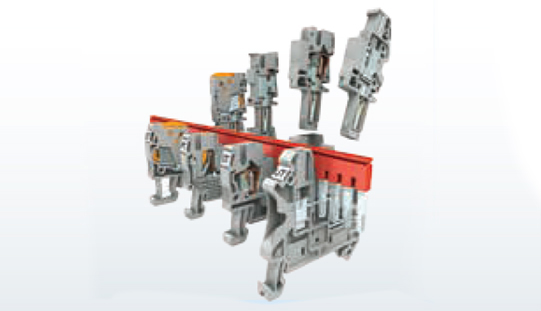

  • CLIPLINE Complete All connection technologies, one system

    With CLIPLINE product line, the unique modular terminal block system from Phoenix Contact you can freely select the connection technology. Irrespective of which connection technology you choose, they can all be freely combined with the same accessories like bridging, marking and test accessories which can standardized and can reduce your logistics and storage costs.

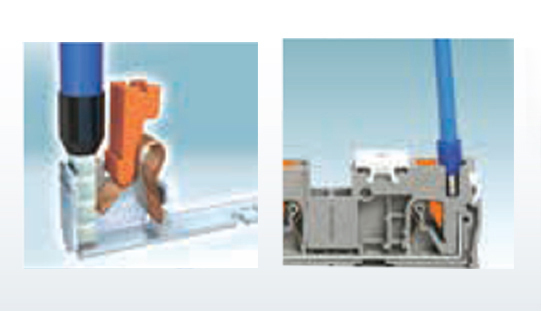

  • Push-in Connection Terminal Blocks

    • Time-saving pre-treated and solid conductor connection, thanks to tool-free direct connection technology
    • Convenient insertion, thanks to 50 percent lower insertion forces
    • Safe wiring and operation, thanks to the color-coded push button
    • Connection of all conductor types, thanks to convenient front connection
    • The conductor can be easily released – without special tools
    • Vibration resistance in accordance with railway standard DIN EN 50155
    • Certified for process engineering in the field of increased safety (Ex e)
    • Connection capacity from 0.2-185 sqm

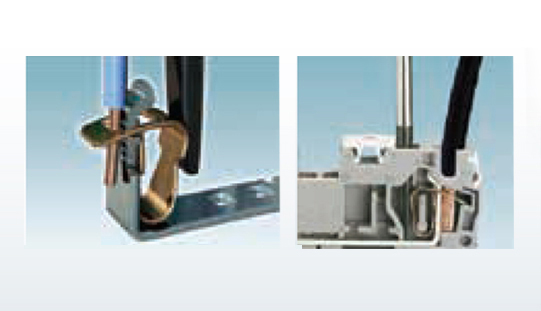

  • Spring Connection Terminal Blocks

    • The proven connection technology for applications those are sensitive to vibration
    • Offers large insertion space it means that conductors with a nominal cross section can be wired both with and without ferrules.
    • Double bridging shaft provides flexible bridging-alternate and continuous bridging is possible
    • ATEX approval is standard for all feed through terminal blocks
    • Connection capacity from 0.04-35 sq.mm

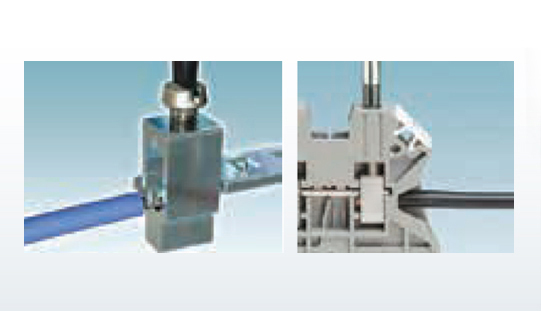

  • Screw Connection Terminal Blocks

    • Save time and space with a multi-conductor connection
    • All metal parts are of Non-ferrous material to avoids electrolytic corrosion
    • Zero maintenance thanks to the Reakdyn principle
    • Known and recognized throughout the world thanks to the proven screw connection
    • Connection capacity from 0.2-240 sq.mm

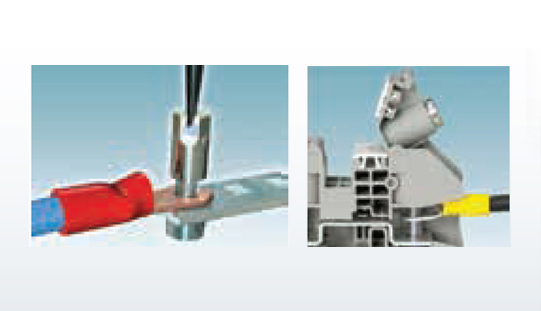

  • Bolt Connection Terminal Blocks

    • Most robust connection for conductors with ring cable lugs
    • Considerable conductor pull-out forces due to a high contact force and large contact surfaces
    • Safety for users thanks to integrated touch proofness
    • Simple potential distribution with time-saving plug-in bridge system
    • Quick ring cable lug wiring thanks to hinged cover which can be swung up
    • Comprehensive range of accessories: standardized for bridging, testing and marking
    • Connection capacity from 0.2-300 sq.mm for power as well as rolling stock applications

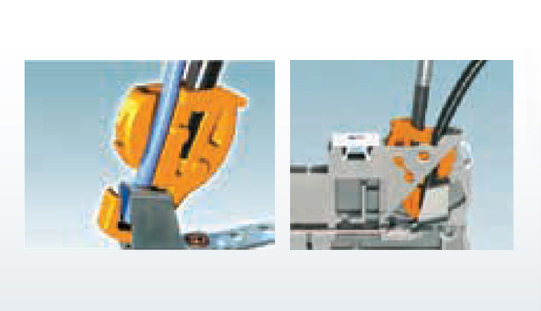

  • Quick-on Connection (IDC) Terminal Blocks

    • Connect the conductor without stripping and no wire preparation required
    • The fast connection technology represents up to a 60% reduction in wiring time
    • The conductor is connected easily, reliably, and quickly with just one turn of a standard screwdriver
    • Connection capacity from 0.25 to 2.5 sq.m

  • BT - Barrier style Terminal Blocks

    • The BT – Barrier style terminal series is a modular terminal block series which is specified to the local Japanese market
    • Convenient ring cable lug: Connection using the screw-on connection principle with spring-guided screw; maintenance-free with integrated screw locking
    • Screw/screw, screw/Push-in and Push-in/Push-in can support any application and demand
    • Flexible setup in your application, thanks to various mounting options: DIN rail mounting or direct mounting
    • Reliable Material. PC (polycarbonate) material. PC has excellent character of mechanical strength. It doesn’t easily deform against the force of tightening screws
    • Connection capacity upto 35 sqm

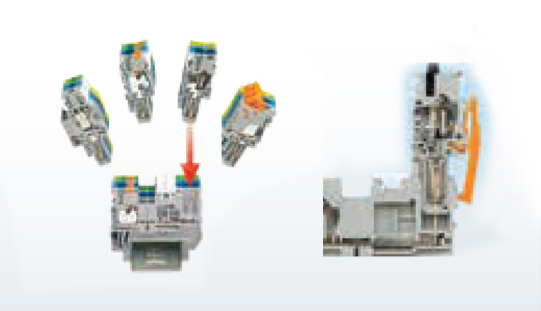

  • Combi Plug-in Connection Terminal Blocks

    • The COMBI pluggable terminal block is a modular DIN rail mounted terminal block which provides for a standard terminal block connection on one side and a plug connection on the opposite as well as a complete hanging solution for inter-panel wiring application
    • Plugs are available upto 15 position & also available in individual plugs for self assembly
    • Available in all connection technologies i.e. Screw, Spring cage, push in and fast connection technology upto 6 sq.m

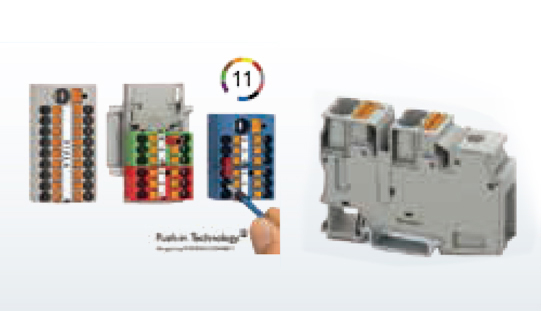

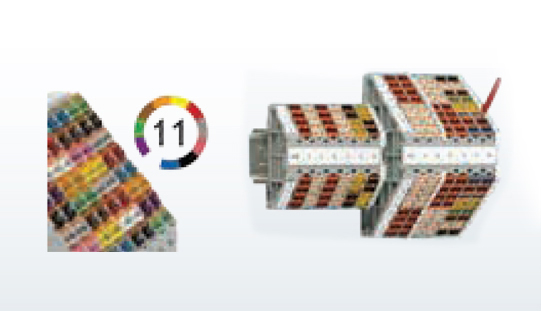

  • Potential Distribution Terminal Blocks

    • Ready-to-use blocks for fast assembly without manual bridging, offering time savings of up to 80 percent
    • Various mounting options: DIN rail mounting, direct mounting or adhesive mounting
    • PTFIX available in 11 colours
    • Testing facilities for all common test probes

  • Marshalling Terminal Blocks

    • Maximum signal density and up to 20% less space required, thanks to the compact design
    • Tool-free wiring in a confined space thanks to compact size
    • Potential distributions with up to 32 connections can be implemented
    • Compact and space saving with an installation length of just 100 mm
    • Freely configurable color assignment for conductors and terminal points enabling intuitive and safe installation
    • Convenient testing by means of freely accessible 2.3 mm test connections centered between the connection points
    • Large-surface, pitch-free marking for matrix identification

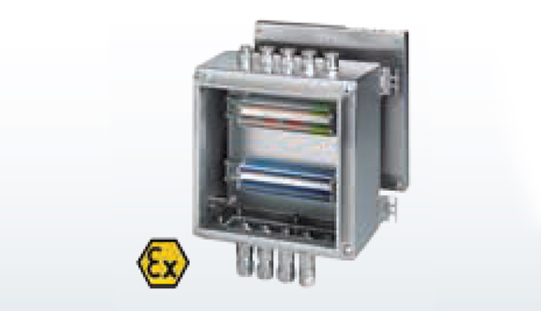

  • CLIPSAFE junction boxes and empty enclosures Designed by Phoenix Contact

    • Innovative product range of 140 high-quality stainless steel enclosures as the basis for individual junction boxes
    • Safe use in extreme conditions thanks to enclosures made from stainless steel up to 2 mm thick, AISI 316L/1.4404 (V4A) and AISI 304/1.4301 (V2A)
    • Safe use outdoors thanks to IP66 rating according to EN 60529 and NEMA 4X according to NEMA 250
    • Reduced assembly and approval effort thanks to ready-equipped junction boxes
    • Individual assembly thanks to the extensive, Ex-approved CLIPLINE complete system terminal block product range

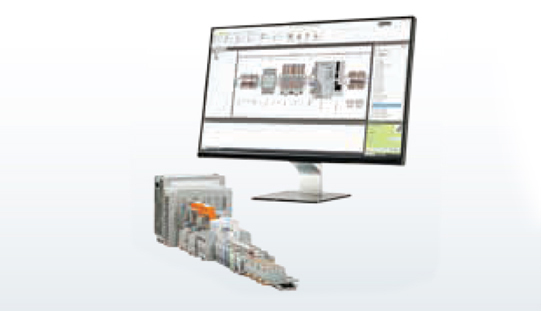

  • Planning and Marking software

    • Intuitive software operation, clear and convenient, thanks to customizable user interface
    • Perfect integration, thanks to optimized interfaces to all common CAE programs
    • Quick and simple orders in real time, thanks to direct connection to the web
    • Comprehensive process support from planning through to the fully assembled DIN rail

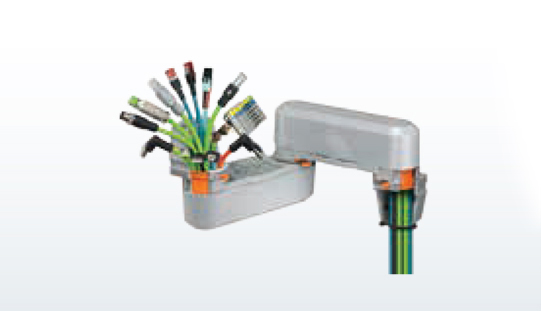

  • Cable Guiding System – CGS

    • Install pre-assembled conductors, cables, and cable harnesses easily, thanks to innovative swivel joints
    • Subsequent wiring is quick and easy, thanks to swivel joint openings that can be operated without tools
    • Cable routing for the control cabinet door can be planned in the CAD system, thanks to the defined installation space and swivel range
    • Easy planning and production of cable harnesses, thanks to the pre-defined cable length
    • Quick and easy mounting, thanks to integrated flanges with strain relief
    • Mechanical cable protection and bundling, thanks to protective covers that can be attached without tools
